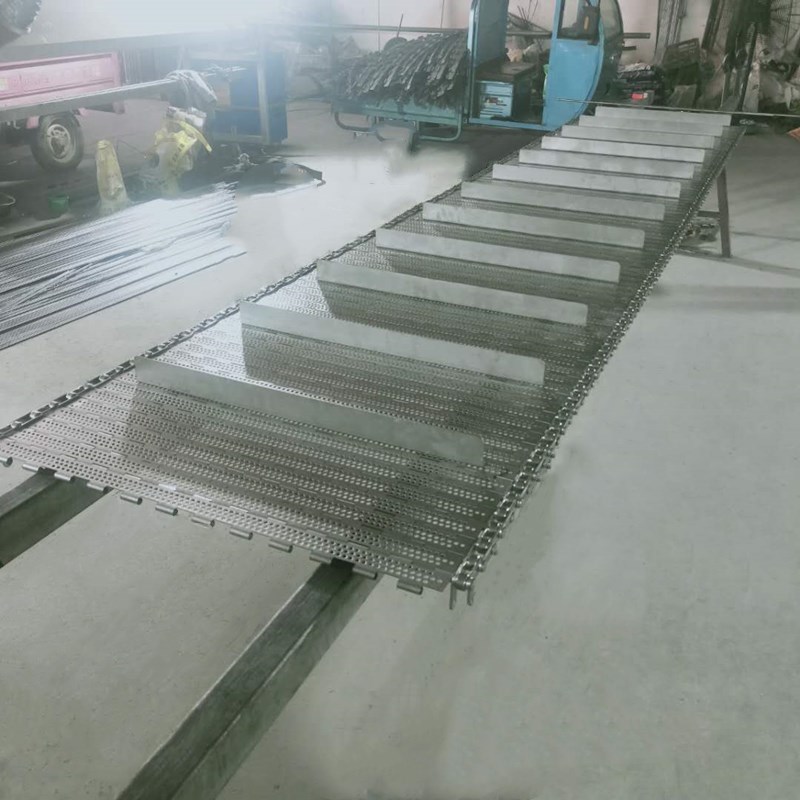

2017年福建的馬總在我廠購買了10米輸送帶

鏈板輸送帶

     鏈板輸送帶非常堅固，由不銹鋼鏈條驅動，采用不銹鋼板材生產，適合用于輸送細小的高密度物件，輸送過程中運轉平穩，安裝更換方便，使用壽命較長。用于中等和大負荷輸送。鋼板彎曲形成合葉，使用支軸將合葉和鏈條串在一起。兩端的鏈條可以使用開口銷或者墊圈來固定，使用開口銷方便拆卸，維護方便。

鏈板大概分：

1，按照材質分：碳鋼鏈板輸送帶，鍍鋅鏈板輸送帶，不銹鋼201鏈板輸送帶，不銹鋼304鏈板輸送帶，其他不銹鋼鏈板輸送帶。

2，根據外形來分：平鏈板輸送帶，帶橫擋板鏈板輸送帶，帶擋邊鏈板輸送帶，沖孔鏈板輸送帶（圓孔，長條孔），帶凸起鏈板輸送帶。

3，根據輸送形式分：直輸鏈板輸送帶，拐彎的鏈板輸送帶。

4，合頁鏈板輸送帶，排屑鏈板輸送帶，槽鋼鏈板輸送帶。

5，雙節距鏈條鏈板帶，精密滾子鏈條鏈板輸送帶。

客戶定做鏈板需要提供的數據

1，鏈條的節距 鏈條的材質

2，鏈板的材質 鏈板的有效輸送寬度 鏈板的總長度 鏈板厚度

3，支軸的直徑 材質 支軸長度

4，鏈板兩邊的支軸是焊上的還是開口銷的。

5，帶擋邊 擋板 其他附件

6，沖孔嗎  孔距多大 孔徑多大

Chain conveyor belt

Chain conveyor belt The chain plate conveyor belt is very strong, driven by stainless steel chain and produced by stainless steel plate. It is suitable for conveying fine high density objects. It runs smoothly during transportation, easy to install and replace, and has a long service life. For medium and large load transportation. The steel plate bends to form a blade and uses a branch shaft to string the blade and chain together. The chain at both ends can be fixed with an opening pin or washer. The opening pin is convenient for disassembly and maintenance. Chain board: According to material: carbon steel chain conveyor belt, galvanized chain conveyor belt, stainless steel 201 chain conveyor belt, stainless steel 304 chain conveyor belt, other stainless steel chain conveyor belt. 2, according to the shape: flat chain plate conveyor belt, with transverse baffle chain plate conveyor belt, with side chain plate conveyor belt, punching chain plate conveyor belt (round hole, long hole), with raised chain plate conveyor belt. 3, according to the form of transport: direct transmission chain conveyor belt, turning chain conveyor belt. 4, hinge plate conveyor belt, chip chain plate conveyor belt, channel steel chain plate conveyor belt. Double pitch chain conveyor belt, precision roller chain conveyor belt. Data required for customized chain boards Material of chain pitch chain 2. Effective Delivery Width of Chain Plate 3. Length of branch shaft Is the branch shaft on both sides of the chain plate welded or open pin. 5. Other accessories with fender How big is the hole spacing
