哈瓦鏈條與普通鏈條的區別：

（1）速度 齒形鏈條轉速每秒16米，哈瓦鏈條轉速每秒30-50米

（2）誤差小普通鏈條采用單軸圓軸，哈瓦鏈條采用雙軸扁軸

專業生產大量現貨各種型號標準 非標準高速靜音齒形鏈條 定制高速無聲齒輪 高速 無聲 大中心距 高速高載 變速高載 扭矩大 耐高溫 優質靜音齒形傳動鏈 高速齒輪

A.具有良好的滲透性
對鏈條來說，潤滑滾子和鏈輪是比較容易的，但潤滑鏈軸和軸套是比較困難的。由于軸和軸套的間隙非常小，且完全屬于開放的環境條件。潤滑油假如沒有很好的滲透性，就不能滲透到軸和軸套的內部，就不能潤滑軸和軸套。
B.要有良好的黏附性
鏈條在運行時，由于高速的作用，潤滑油會被甩脫。低速時潤滑油由于重力的作用會流滴。所有這些不僅會污染環境和產品，而且還會造成大量的浪費。因此要求潤滑油要具有良好的黏附性，能夠牢牢的黏附在摩擦表面，而不會因各種作用脫落。
C.具有良好的潤滑性能
潤滑油的作用之一就是潤滑，但是鏈條在運行中由于受到不同的作用時，會對潤滑油的潤滑性能要求更高，特別是那些重負荷和沖擊條件下的鏈條，對極壓抗磨性的要求就更高，因此一般的鏈條潤滑油都非常注重這方面的要求。
D.具有杰出的氧化安定性
通常鏈條傳動都是工作在暴露的環境中，因此鏈條潤滑油要求具有良好的氧化安定性。
E.具有較小的蒸發損失率
F.具有良好的抵抗外界作用的能力
G.具有不易受污染的特性
H.具有最小的積碳傾向
以上是鏈條傳動對潤滑劑的基本要求，當然還有很多其它要求，這些要求會因傳動鏈條使用的范圍、環境、設備要求等不同而側重點也不同。

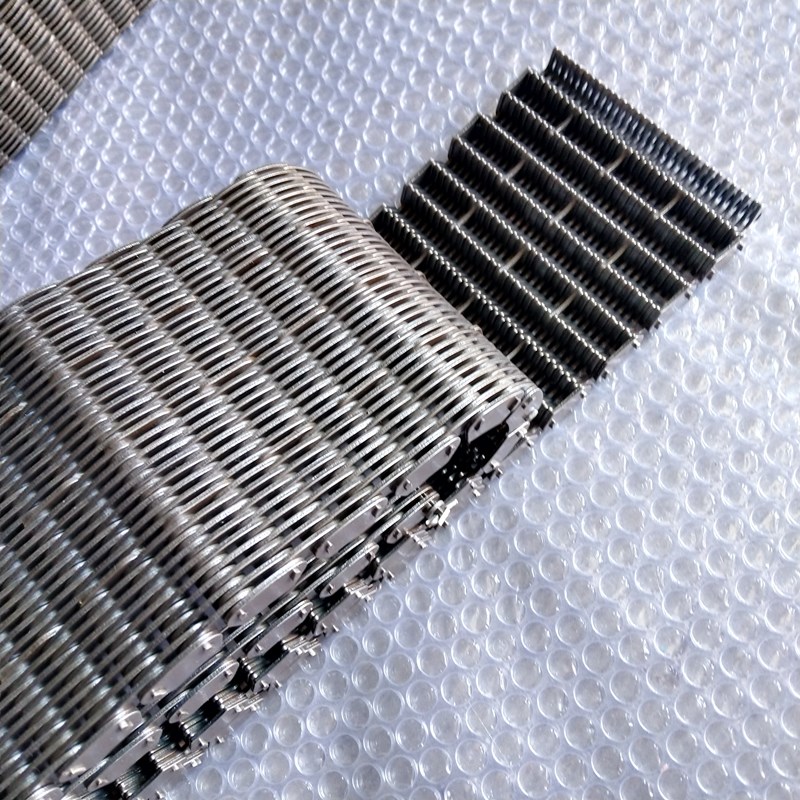

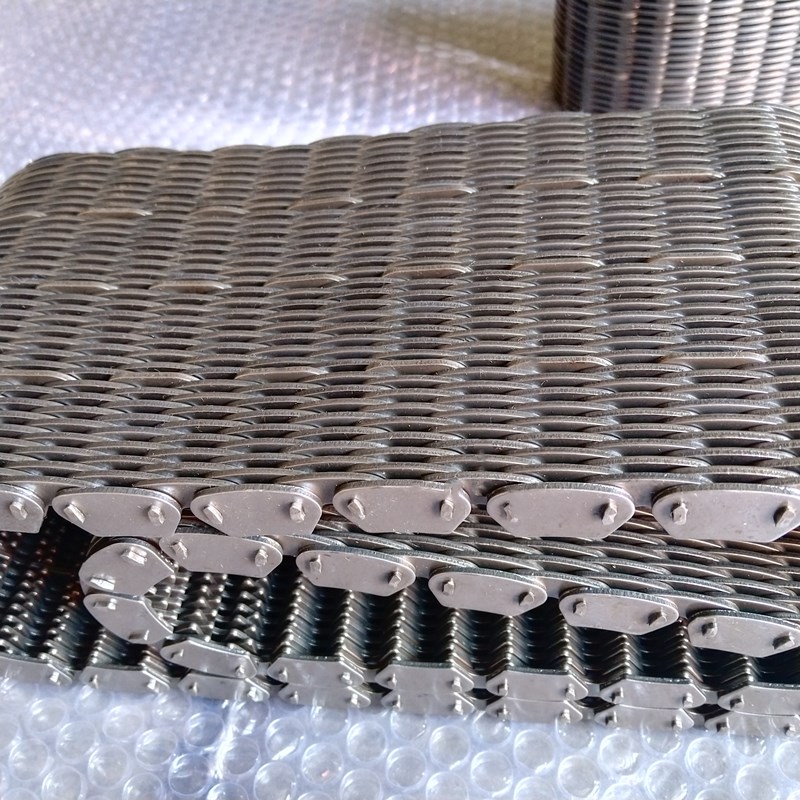

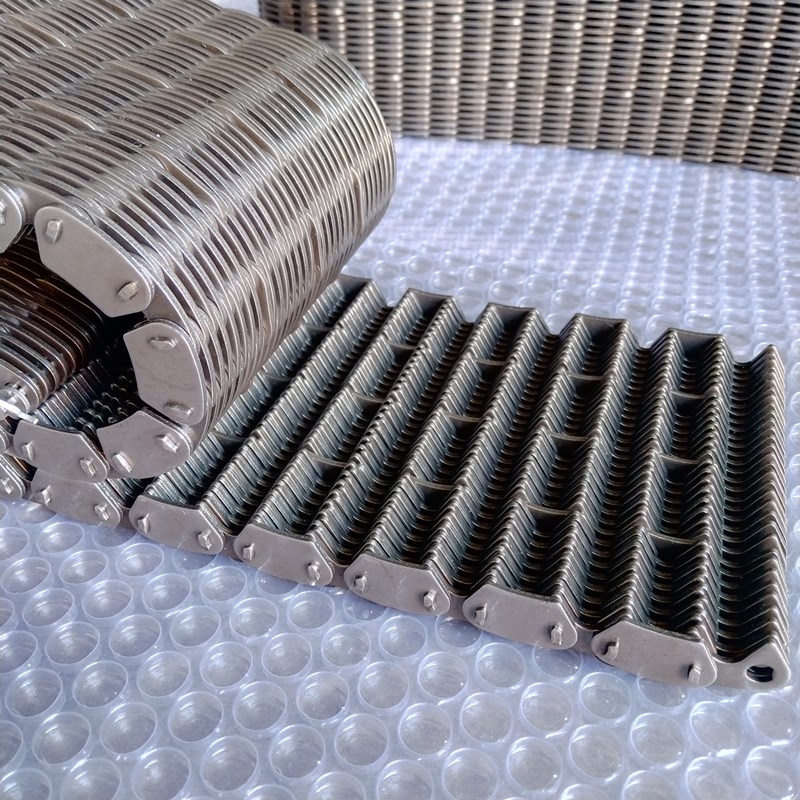

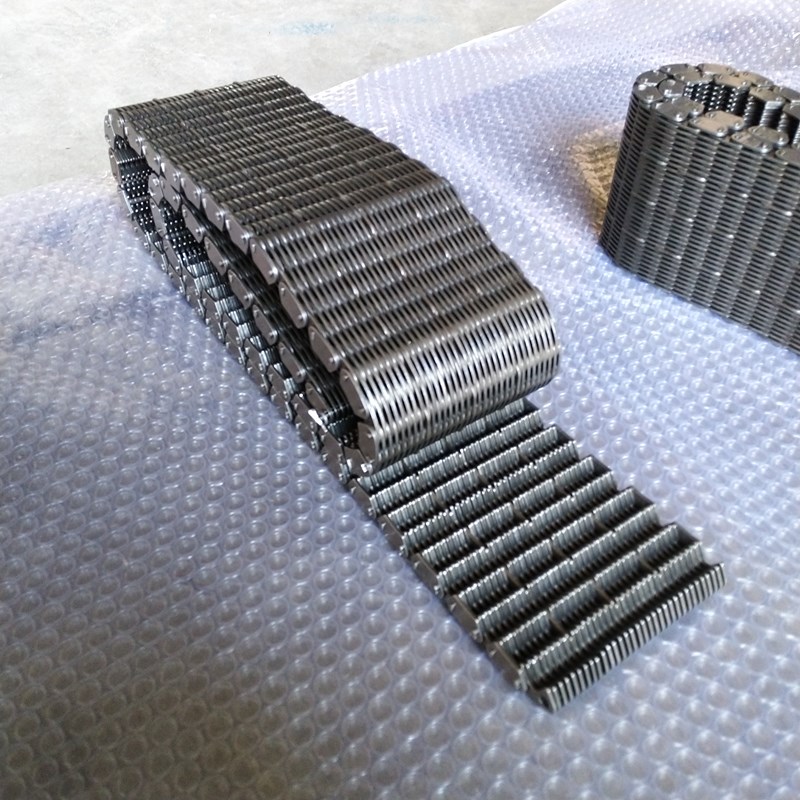

Silent chain

HV chain is ideal for applications where heavy loads (50 to 6000 horsepower) are to be transmitted at moderate to high speeds. It is also ideal where compact design is important. HV features a pin and rocker joint which reduces friction and provides pitch elongation through its rolling action. This results in a reduction of chordal action and a significant increase in horsepower capacity.

Silent chain is an inverted tooth chain offering low to moderate horsepower for applications. The exclusive rocker joint eliminates friction during chain articulation permitting high rotative speed with less wear and heat

High speed gear chain (Hawa chain) transmitting power for 50~6000 horsepower, more than 3000 rpm to high speed applications, compact design, it is an ideal transmission chain chain. She is a kind of high precision gear chain belt, both the smooth and compact chain drive, economic life and long. Characterized by a pin shaft hinge and rolling action between tiles to reduce friction and realize pitch elongation, the result is the effective growth of power transmission capacity and reduce the damage. The polygon effect after shot peening and prestressed chain plate processing, which has larger bearing capacity with a power capacity of three. In the times of the silent chain, with high speed range at high speed roller chain work ability decreased sharply, is the ability to continuously improve the Hawar chain. So the Hawa chain has on many occasions beyond all dispute, remarkable advantages Applicable to all applications of high speed prime mover, such as diesel and gas turbine power transmission and so on.

Silent chains RPV303 RPV304 RPV305 RPV306 RPV308 RPV310 RPV312 RPV403 RPV404 RPV406 RPV408 RPV410 RPV412 RPV416 RPV606 RPV608 RPV610 RPV612 RPV616 RPV620 RPV624 RPV808 RPV810 RPV812 RPV816 RPV820 RPV824 RPV1210 RPV1212 RPV1216 RPV1220 RPV1224 HPC silent chain HDL silent chain BIZ015A silent chains RPV is high performance inverted tooth chain, specifi
